WG252-115V WG252-220V / WG1012

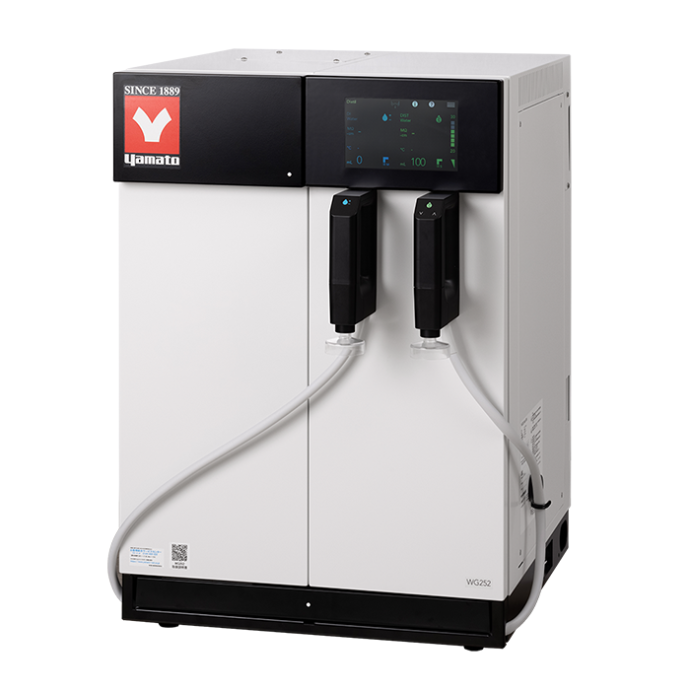

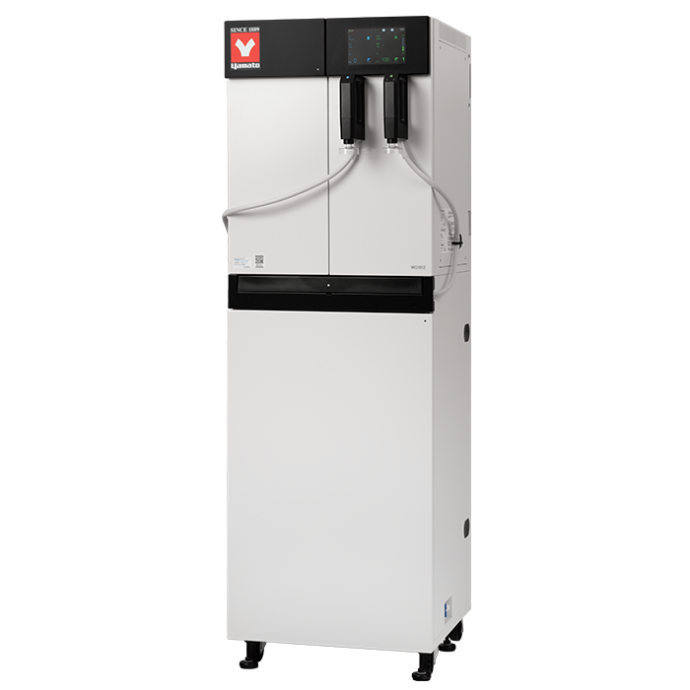

Yamato WG Series Auto Still Lab Water Purification System
Description
Yamato’s Auto Still multi-purpose water purification system come standard with water intake membrane filters to increase the life span of all consumables and a 30L(WG252) or 100L (WG1012) large storage tank capacity. The standard equipped membrane filters at feeding port protect pure water production from contamination. The WG series produces ASTM deionized water type 1 and type 2 distilled water kept in a 30L or 100L storage tank.
Features
-
Two independent dispensers for water sampling
-
7-inch LCD touch panel system
-
Consumable management functions
-
Trend graph
-
Easy replacement of ion-exchange resin
-
Large distilled water tank with capacity of 30L (WG252) and 100L (WG1012)
-
Easy to use slide out type water sampling tray with drainage eliminates concerns about overflowing water discharge
Stop wasting half your ultrapure water budget.
Fill in the form below for a quote

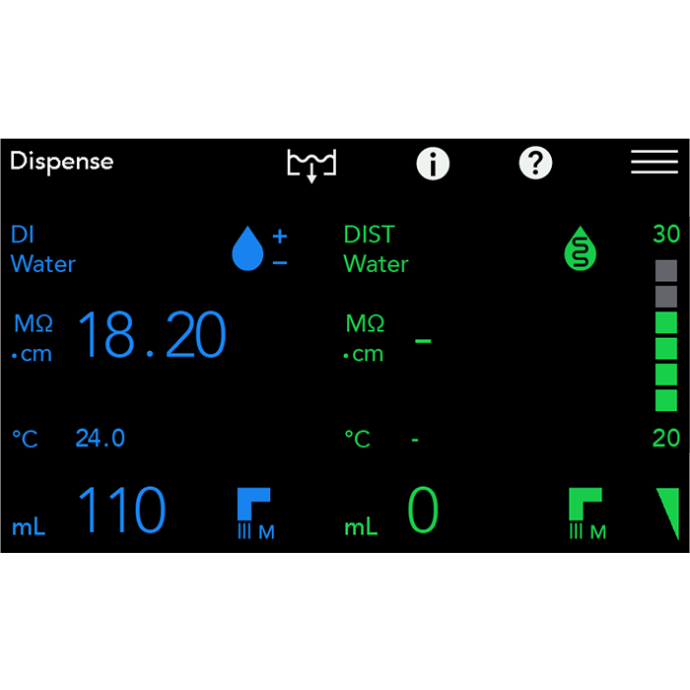

Control Panel

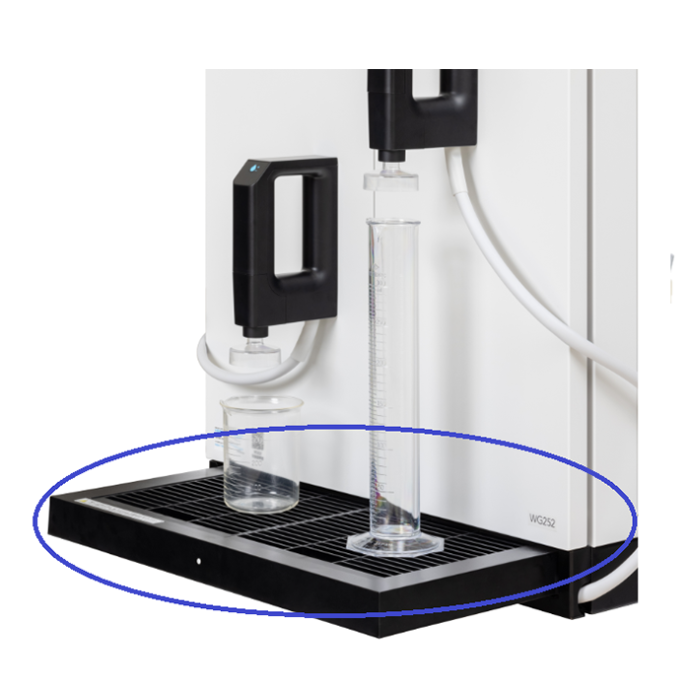

Water sampling tray

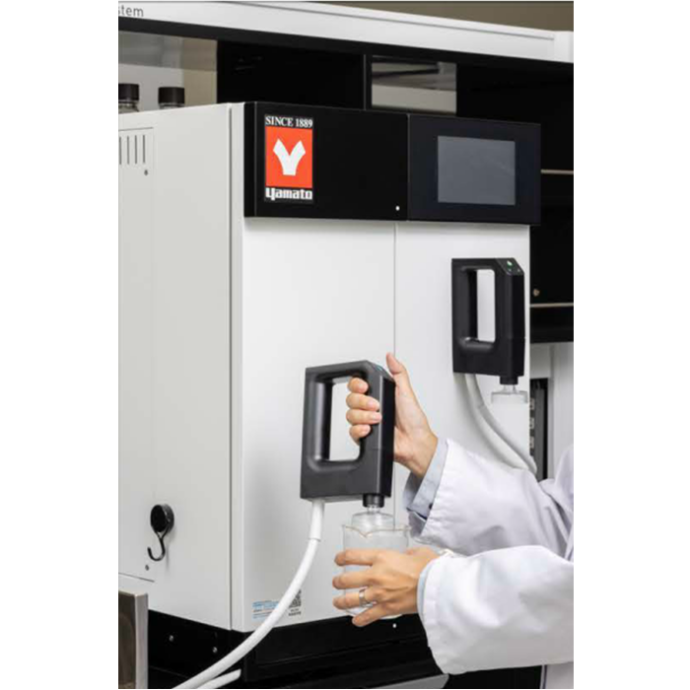

Independent Dispensers
Yamato WG Series Auto Still Lab Water Purification System
Technical Specs
| Model | WG252-115V WG252-220V | WG1012 |
|---|---|---|
| Water purifying method | Ion exchange→Distillation→Filtration | |
| Purified water | Deionized water and distilled water | |
| Distilled water production | ~1.5L/h | ~5L/h |
| Distilled water delivery rate | ~2.5L/min (with variable flow rate function) | |
| Deionized water delivery rate | ~1.0L/min (with variable flow rate function) | |
| Range of production | 0.1~30L / continuous water collection | 0.1~100L / continuous water collection |
| Condenser | Hard glass | |
| Heater | Ceramic heater 1.2kW | Ceramic heater 1.9kW x 2 |
| Pre-treatment cartridge | 0.1µm hollow fiber + activated carbon (PWF-1) | |
| Ion-exchange resin cartridge | CPC-S 4L x 1pc. (activated carbon high-purity cartridge) | CPC-S 4L x 2pcs.(activated carbon high-purity cartridge) |
| Final filtration | 0.1µm membrane filter x 2 | |
| Leakage detection | Water leakage detector forcefully shuts off feed water solenoid valve when water leakage detected | |
| Distilled water tank capacity | 30L polyethylene tank | 100L polyethylene tank |
| Distilled water UV sterilization | Optional | |
| Water sampling tray | Slide out type, load-bearing capacity 10kg, for 5L beaker | |
| Multi-purpose distilled water sampling port | For connecting Φ8 hard tube (right side of main body) | |
| Raw water pressure range | 0.05-0.5 MPa | 0.1-0.5 MPa |
| Distilled water tank full water setting | 2, 10, 20, 30L | 10, 30, 60, 90L |
| Power source (50/60 Hz) | AC115V 11A AC220V 6A | AC220V 18A |
| External dimension*¹ | W540 x D570 x H775 mm | W550 x D570 x 1715 mm |
| Weight | ~63kg | ~113kg |
| Water level display | LED display | |
| Water quality display | Digital (conductivity or resistivity) | |
| Other display | Notification: Consumables replacement / Periodic maintenance, Alarm: Water outage / Trend data recording impossible / Power failure / Distilled water quality deterioration, Abnormality: Controller / Water leakage / Heater overheating / disconnection / Tank water level gauge / Boiler water level, Water level gauge / Boiler drainage route / Cooling water / Water quality meter / Water sampling pump, / Ion exchange water flow reduction / Water sampling route | |
| Accessories | 1 water supply hose (2 m), 1 water supply hose filter, 1 connection hose assembly, 1 can stone cleaner, 1 pretreatment cartridge, 1 ion exchange resin cartridge, 1 air vent filter, 2 membrane filters , 2 filter covers, 2 magnet hooks | |
*1. Protrusions not included
