RE202-A  RE212-A / REV202M-A  REV212M-A

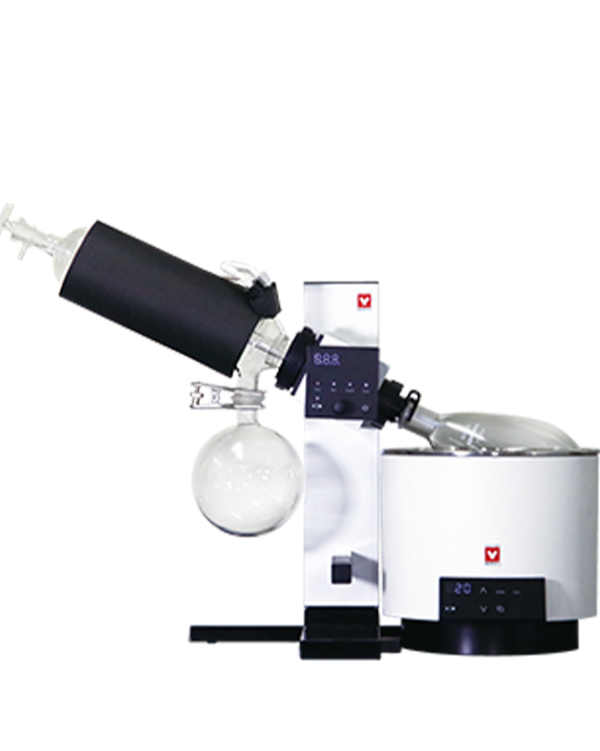

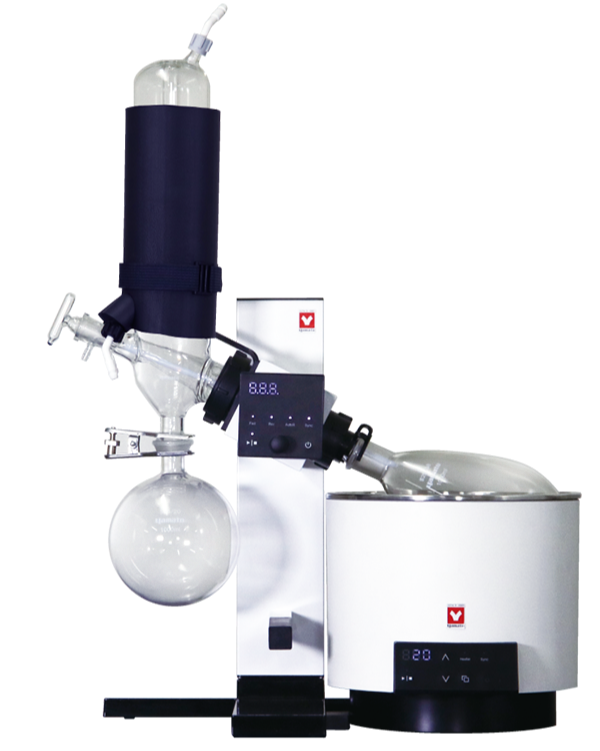

                                  Yamato RE Series Standard Rotary Evaporator with Slide Jack Mechanism

                                  Rotary evaporators have become an indispensable part of the cannabis extraction, filtration and refinement processes. The right rotary evaporator helps produce high-quality, consistent products, at a lower cost than other methods.

                                  The Yamato RE202-A/RE212-A rotary evaporator was designed with space and power in mind. There’s no need to compromise, get a compact machine with great functionality. Engineered for growing businesses, like yours, large amounts of solvent can be evaporated with minimal hands-on time.

                                  The RE202-A/RE212-A model is a market leader in rotation speed range (at 5~315 rpm), giving you room to determine optimal evaporation performance. And because cannabinoids are extremely sensitive to heat, achieving correct temperature settings are essential in achieving the purity and strength of your extract.

                                  Achieve consistent productivity, without sacrificing space or sample integrity. With a set inversion function, the glassware and bath can be set on either side, so you don’t have to waste time worrying about precious space. And with servo type motors, they will maintain stability, even in large capacity flasks.

                                  The Yamato RE Series Standard Rotary Evaporator helps you concentrate actives, and recycle solvents.







                                  Interested in a  rotary evaporator that saves operators 2-4 hours every week ?

                                  Fill in the form below to request a quote


                                  Benefits:

                                  These rotary evaporators will help your business by:

                                  • Removing residual ethanol at a lower cost than other tools

                                  • Easily creating extracts with consistent properties and doses, which is essential for medicinal cannabis users

                                  • Achieving excellent repeatability for a more consistent product

                                  • Efficiently removing extraction solvents through evaporation without any negative effects to your end product

                                  • Adaptability for your business needs and growth, with an easily scalable process

                                  • Achieving faster evaporation rates, which helps create lower THC concentrations in edibles, or if you’re distilling cannabis oil

                                  • Using more environmentally-friendly technology, allowing for the recovery and reuse of solvents (and meeting growing demand for eco-friendly products)

                                  • Enables solvent recovery with high enough purity to enable re-use. Solvent recycling results in substantial cost and storage space savings

                                  Features

                                  • Cables stored neatly inside the AC adapter holder at the back of the main unit

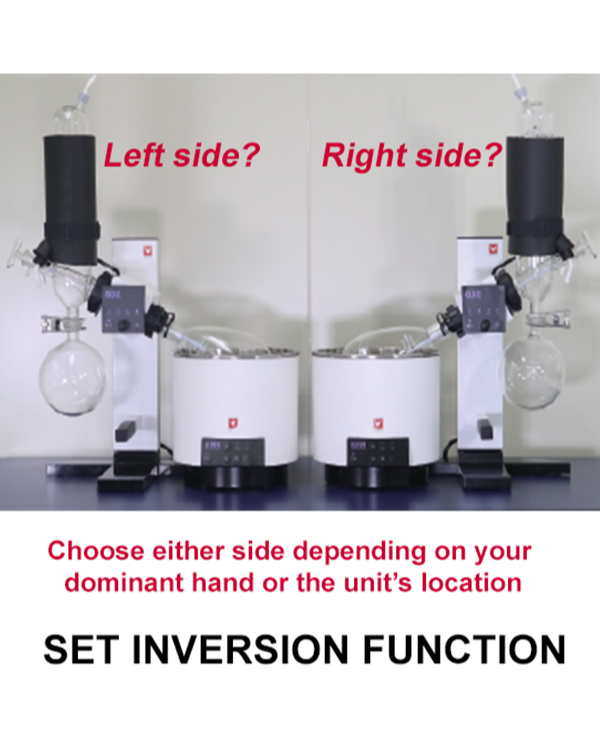

                                  • Flexible glassware and bath position. You can put them on the left or ride side, depending on your dominant hand and the unit’s location

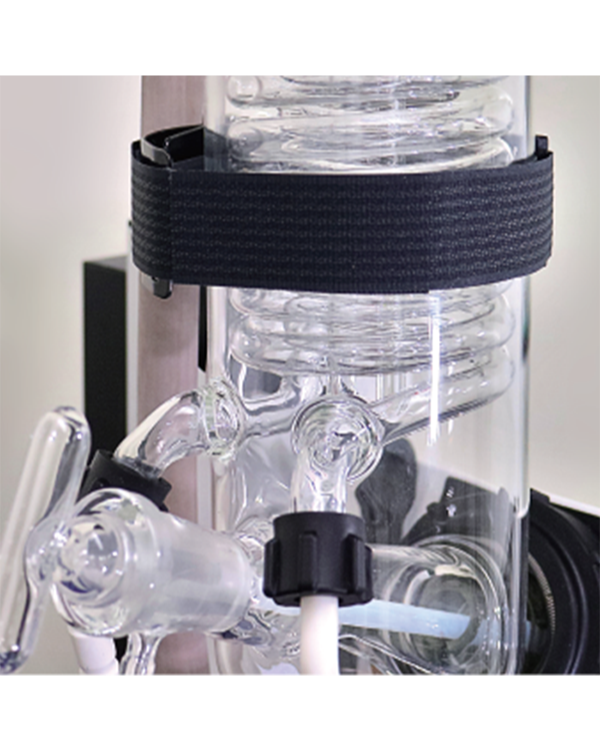

                                  • Rotary Evaporator is equipped with a condenser insulation kit, which prevents condensation on the condenser’s surface

                                  • Anti-liquid stagnation glass condenser design, which improves durability of the vacuum seal

                                  • Has a servo-type motor with strong high torque, which sustains a stable rotation in large capacity flasks

                                  • Designed with a vacuum controller (REV models)


                                  RE202/212 Introduction Video




                                  RE202/212 Installation Video





                                  Yamato RE Series Standard Rotary Evaporator with Slide Jack Mechanism

                                  Technical Specs

                                  Model WITHOUT VACUUM CONTROLLER WITH VACUUM CONTROLLER

                                  RE-202-A
                                  RE-212-A
                                  (Glassware A)
                                  RE202-BWA
                                  RE212-BWA
                                  (Glassware B)
                                  REV202M-AWA
                                  REV212M-AWA
                                  (Glassware A)
                                  REV202M-BWA
                                  REV212M-BWA
                                  (Glassware B)
                                  Performance*¹
                                  Operating ambient temp. range
                                  5~35°C
                                  Speed Range 5~315 rpm*³

                                  Evaporator Capacity Up to 23ml/min (water)
                                  Functions RPM display
                                  Digital display / Encoder dial setting

                                  Rotation mode
                                  Forward/Reverse/Auto reverse

                                  Spring-loaded jack
                                  Manual balance (Max. height 200 mm, stepless regulation, one-touch lock)
                                  Configuration Vacuum controller --- --- VR102S, installed above jack handle with attachment bracket

                                  Vacuum control solenoid valve
                                  ---
                                  ---
                                  OVR10, installed in the rear of stand base

                                  Rotary motor
                                  DC brushless (simple servo)

                                  Condenser retention --- Condenser bracket --- Condenser retention
                                  Safety Function Rotary evaporator
                                  DC motor: Motor overload protection, overvoltage, low voltage, rotation speed sensor error

                                  AC adapter: Short circuit in internal circuit, overcurrent protection, overvoltage protection
                                  Vacuum controller --- --- Communication error, Pressure sensor error, Memory error, Leak error, High pressure error, Auto leak at error occurrence
                                  Standard
                                  Cooling condenser
                                  Double corrugated tube

                                  (cooling surface: 0.143 m²)



                                  Suction port: GL-14
                                  (lower), Φ10 nozzle
                                  Suction Port: GL-14
                                  (upper), Φ10 nozzle
                                  Suction port: GL-14
                                  (lower), Φ10 nozzle
                                  Suction Port: GL-14
                                  (upper), Φ10 nozzle


                                  Cooling port: GL14 (two places in lower part), two φ10 nozzles
                                  Compatible evaporation flask
                                  0-2000ml for TS24. Use optional reducer to attach small flasks.

                                  Compatible receiving flask
                                  100-2000 ml

                                  External dimensions*² (W x D x H)
                                  719 × 324 × 534
                                  529 × 324 × 745
                                  719 × 324 × 534
                                  529 × 324 × 745

                                  Overall dimensions*² (W x D x H)
                                  744 × 365 × 534 554 × 365 × 745 744 × 365 × 534 554 × 365 × 745

                                  Power rating 50/60Hz
                                  RE202 and REV202M: 100-115V 1A
                                  with plug
                                  RE212 and REV212M: 200-230V single phase 1A
                                  no plug, round terminal

                                  Weight
                                  ~10.0 kg
                                  ~10.5 kg
                                  Included Accessories
                                  Main unit
                                  AC adapter (1), power cable (1), bath guide (1), rear cover (1), single-sided tape fastener roll (1), double-sided tape fastener roll (1)

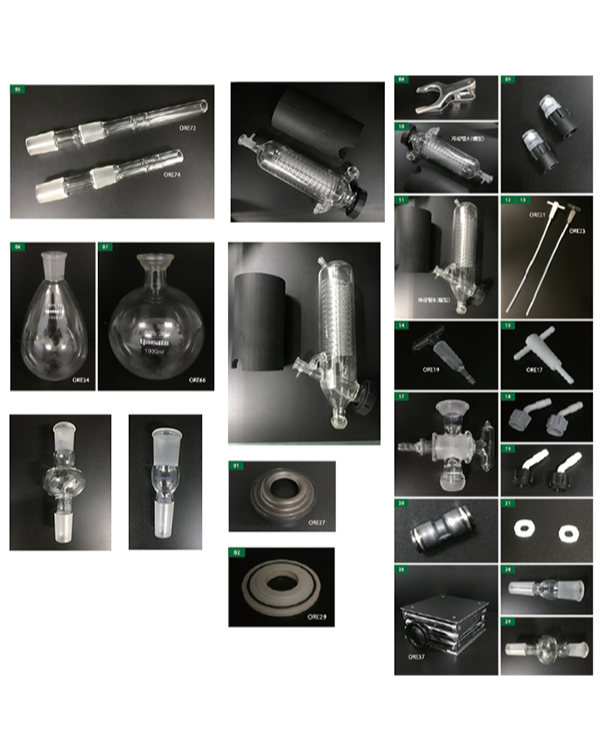

                                  Glass set
                                  Cooling condenser (type A/B)(1), rotary joint (1), evaporation flask (1), receiving flask (1), ball joint clamp (1), flask clip (1), vacuum seal (1), condenser insulation kit (1), condenser bracket (1) (for type B), hex wrench (1) (for type B)
                                  List Price
                                  $ 2,230 (with diagonal condenser and water bath)
                                  $ 2,360 (with vertical condenser and water bath)
                                  $ 3,720 (with diagonal condenser and water bath)
                                  $ 3,850 (with vertical condenser and water bath)
                                  *¹ Performance data above based on 23 ±5°C room temperature, 65%RH ±20% humidity, and no process load.
                                  *² Dimensions excludes protrusions.
                                  *³ Applicable rotation speed range and sample volume depend on the capacity of evaporation flask.
