GB210A

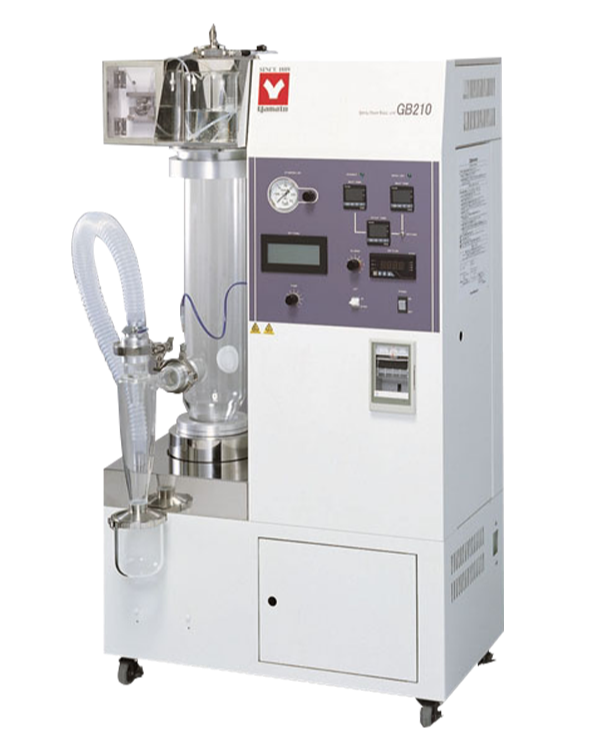

Yamato GB210A Versatile Mini Spray Dryer
New spray drying technology is fundamentally changing the cannabis industry, with cannabis micro-powder positioned to be the most in-demand product in the next five years. Early adopters of new spray drying technology will benefit most, and the Yamato GB210A spray drying unit is an excellent, versatile, user-friendly model to help your business grow.
The Yamato GB210A mini spray dryer is compact, versatile, and can easily produce cannabis powder on a lab scale. The GB210A spray drying unit is capable of drying ultra small samples, as low as 30mL, and can spray dry your cannabis oil into fine, premium powder of 1μm to 25μm in size.
Every one of our spray drying systems are carefully designed and built to match your essential needs, and the GB210A is no exception! Obtain a combination of high performance and versatility, at a more affordable price.
Interested In Our Yamato GB210A Versatile Mini Spray Dryer?
Fill in the form below to request a quote
Yamato GB210A Versatile Mini Spray Dryer
Benefits
Spray drying allows manufacturers, distributors, retailers and growers to create products that last longer on shelves, cost less to transport and mix better with consumer products than oils. Benefits of using the GB210A to create premium cannabis powder include:

Lower shipping costs
Spray drying reduces your product’s weight and volume, making it more cost-effective to ship (and leading to huge savings over time)

Easier storage
Powder is astronomically easier to house than oil.

Longer shelf life
The average shelf life of a spray dryer product is over one year.

Absolute solubility
Water and oil don’t mix. Cannabis powder mixes into edibles and drinks better.

A more consistent product
Spray drying makes it easier to produce standardized, cannabinoid-infused products.

Fast-acting, predictable and repeatable experiences
With an onset of 20 minutes, effects that can last up to 4 hours, and a consistent product, customers get a more predictable experience.

More eco-friendly choice
From production to shipping, cannabis powder is proven to be a more eco-friendly alternative.

Lab-scale process validation
Produce consistent results for customers, and ensure your product development can keep up with demand with scalable, spray drying technology.
Yamato GB210A Versatile Mini Spray Dryer
Features
The GB210A spray dryer is built with features that can benefit the cannabis industry at every point in the supply chain: cultivation, production, supplier and retail.

User-friendly
Convenience and efficiency to your business is key. The GB210A spray dryer model employs a one-touch removal system, which makes removal and cleaning of the drying chamber, cyclone, and product container much easier. An automatic lift is equipped as standard to enable easy installation or removal of glass drying chamber attachment

Improved safety
Cannabinoids can be unstable at high temperatures. With this model, your products can be reliably processed into fine powder without any damage to your sample, with heat applied instantly and indirectly to the powder itself.

Quality end product
Your end product will be fine, pure, contaminant-free powder which is not oxidized and contains minimal posture

Efficient
Directly drying your oil product into fine powder, with no pre- or post-processes (including filtration, separation or pulverization) required.

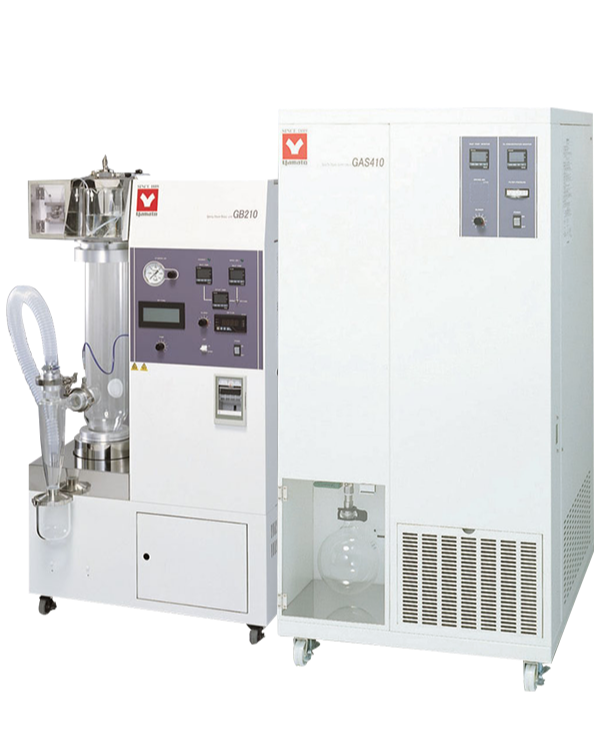

It comes with a unique peristaltic pump, nozzle cooling mechanism, pulse jet mechanism and a nozzle knocker for stable spray drying. Spray dryer is designed for aqueous soluble samples. When organic solvent is used, a GAS410 organic solvent recovery unit is required. A service outlet (max. 2A) and a sample stand are equipped as standard for connecting a magnetic mixer for stirring suspended liquid sample. In addition, the GAS410 spray dryer has the ability to process samples containing organic solvents by connecting the Organic Solvent Recovery Unit GAS410 to the spray dryer. The unit can also be used as a fluid bed drying granulator by installing a separate mini bed attachment GF200 instead of GF300 spray drying attachment.
Yamato GB210A Versatile Mini Spray Dryer

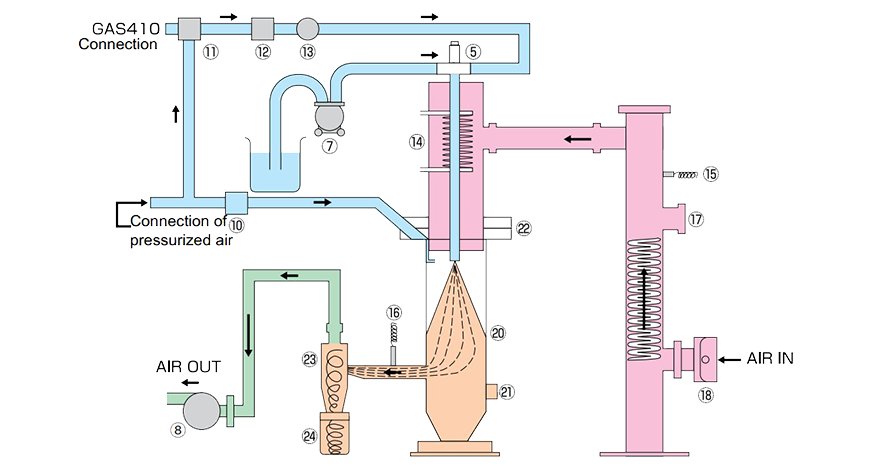

Diagram

No. | Part name
1. Heater
5. Spray nozzle
7. Liquid sending pump
8. Blower, exhaust filter
10. Solenoid valve
11. 3-way Solenoid valve
12. Needle valve
13. Pressure meter
14. Nozzle cooling port
15. Inlet temperature sensor
16. Outlet temperature sensor
17. Blind
18. Suction Port, suction filter
19. Nozzle cooling connection port
20. Drying chamber
21. Cap
22. Distributor
23. Cyclone
24. Product collecting container
Handling

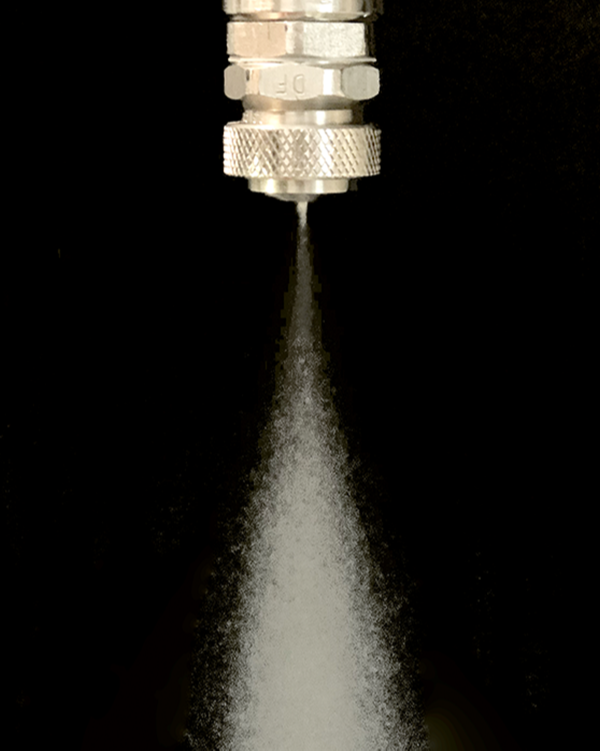

Spraying Nozzle
Two-way Nozzle System
Tip of the Nozzle comprises of a nozzle for liquid and a nozzle for gas.
Easy to take apart for cleaning to prevent contamination
Nozzle for liquid (F)
Nozzle for gas (A)
Model | Nozzle No. | Size (um) |
1A (Standard) | (F) 1650 (A) 64 |
A 406 B 1270 C 1626 |
1 | (F) 2050 (A) 64 |
A 508 B 1270 C 1626 |
2A | (F) 2050 (A) 70 |
A 508 B 1270 C 1778 |
2 | (F) 2850 (A) 70 |
A 711 B 1270 C 1778 |
3 | (F) 2850 (A) 64 |
A 711 B 1270 C 1626 |
Yamato GB210A Versatile Mini Spray Dryer
Technical Specs
Model |
GB-210A
|
Temp. Adjusting Unit Setting Range | 40 to 220°C (inlet temperature), 0 to 98°C (outlet temperature) |
Temperature Adjusting Accuracy |
Inlet temperature ±1°C |
Spraying System |
Two-way nozzle, Nozzle No. 1A as standard |
Drying Air Amount Adjusting Range |
0 to 0.7 m³/min |
Spray Air Pressure Adjusting Range Liquid Sending Pump Flow Rate Range |
0 to 0.3 MPa 0 to 26 ml/min |
Spray Air Line Washing Function |
Spraying at the nozzle tip, manual pulse jet system |
External Output |
Inlet temperature, outlet temperature, temperature outlet (4-20 mA) |
Automatic Lift |
Moving up/down of glass chamber automatic lift |
Temperature Adjusting Device |
PID digital |

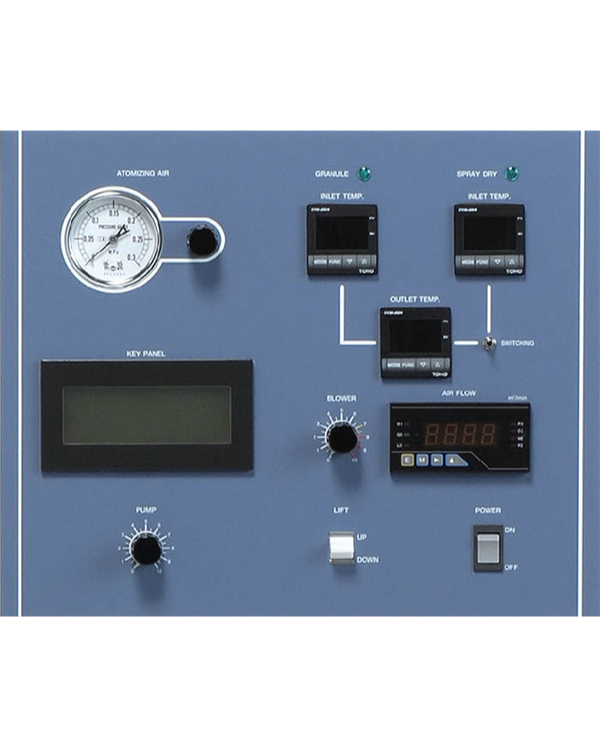

Touch Panel |
Blower, heater, liquid sending pump, pulse jet switch, error display |
Control Select Switch |
Inlet temperature, outlet temperature control switch (outlet temp. control is conditional) |
Temperature Sensor |
K thermocouple |
Heater |
2.0kW (at 200V) to 2.88kW (at 240V) |
Liquid Sending Pump |
Fixed amount peristaltic pump |
Spraying Air Pump |
For water soluble samples air compressor is used (sold separately). For organic solvent samples the integrated compressor in GAS410 is used (no separate air compressor required). |
Service Outlet |
For stirrer: AC100V, Max. 2A |
Suction Blower |
Bypass blower, brushless DC motor |
Filter |
Suction filter, exhaust filter |
Recovery Of Solvent |
Use Organic Solvent Recovery Unit GAS410 (sold separately) |
Spray Nozzle Cooling Mechanism |
Connector: nipple x 2, O.D.:ø10.5 mm |
Spray Air Connection Diameter |
Nipple diameter: ø7 mm |
Spray Air Pressure |
Bourdon tube: 0.3 MPa |
Exhaust Connecting Diameter |
ø50mm |
Safety Function |
Inlet/outlet temperature overheat, sample feed reverse rotation mechanism, over current electric leakage breaker, nozzle connection error |
External Dimension WxDxH |
760 x 420 x 1350 mm |
Weight |
~110kg |
Power Supply |
Single Phase AC200V~240V 50/60Hz 16~18A Switching of terminals necessary |
Included Accessories |
Silicon tube (with a stopper) x 3, tiron tube (with a stopper) x 2 exhaust duct (with one hose band) x 1, outlet temperature sensor, spray air tube, sample box, static electricity removal earth, Teflon braided hose 5m (with two hose bands), a container table |
Recommended Operational Units |
GAS410 Organic Solvent Recovery Unit, GWS410 Organic Solvent Washing Unit |
