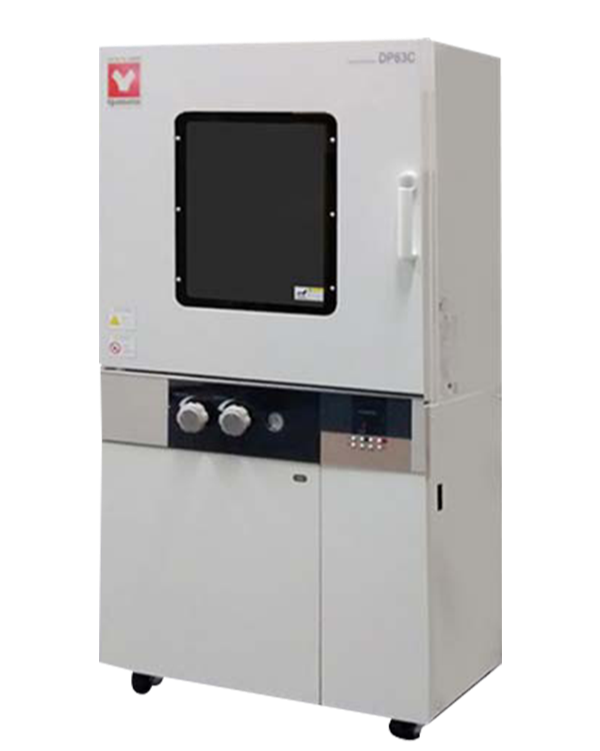

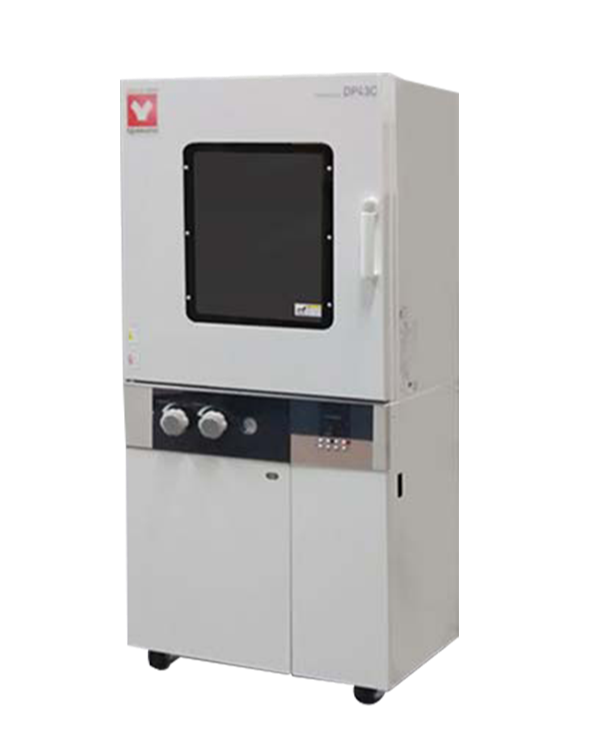

DP43C/63C
Yamato DP Series Large Vacuum Drying Ovens
The right vacuum oven makes you more efficient by ensuring the production of quality cannabinoid products takes less time, and proceeds to market faster. Which, ultimately, leads to happy customers and helps your bottom line. Vacuum ovens also help you produce higher quality products, and are great for drying cannabis flowers to remove residual solvents and prevent development of mildew and mold.
The DP43C/63C Yamato large drying oven comes from more than a century of experience building exceptional-quality lab instruments. They're already used by biotechs working on innovative cannabis products across the country, and they pair perfectly with other Yamato lab-scale instruments - making your workflow and ongoing maintenance easier. Learn more below and contact us to request a quote.
Interested in Yamato DP series large vacuum drying ovens ?
Fill in the form below to request a quote
Performance & functions:

-
Interactive key input of the control panel for easy operation
-
Equipped with high precision functions such as fixed temperature, quick auto stop, auto stop, auto start and program operations for enhanced performance
-
Vacuum reaching time significantly reduced by improvement of the exhaust system, resulting in more efficient operation
-
Vacuum pump can be stored in the bottom cabinet, which is suitable for space limited laboratories
-
Easy removal of piping and maintenance of the vacuum pump
-
Calibration off-set function
Safety features
-
Enhanced safety features: sensor trouble detection, SSR short circuit detection, heater disconnection detector(sensor), memory error, internal communication error, overheating and measurement temperature error
-
Large observation window with protective cover for increased safety
Yamato DP Series Large Vacuum Drying Ovens

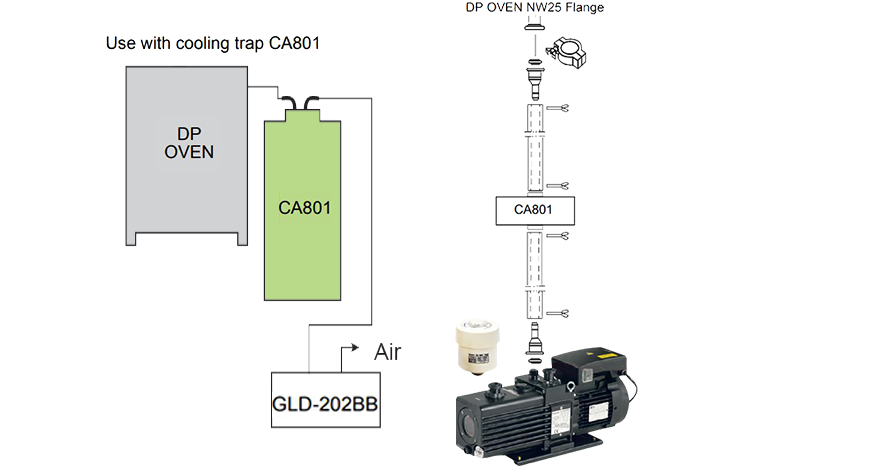

Sample Installation with Cold Trap and Vacuum Pump

ULV-DPCARKIT
NW25 18mm Hose Nozzle
NW25 Centering O-Ring
NW25 Hinged Clamp
Rubber Hose ID 16mm x 5'/1500mm
Hose Clamp for ID: 7/16" - 11mm hose
GLD-202BB
Hose port type suction pipe (OD: 18mm x M20)
50mm
Square adaptor
for suction port
Rubber Hose ID 16mm x 5'/1500mm
Hose Clamp for ID: 7/16" - 11mm hose
Dimensions

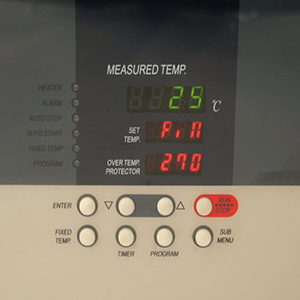

Control Panel

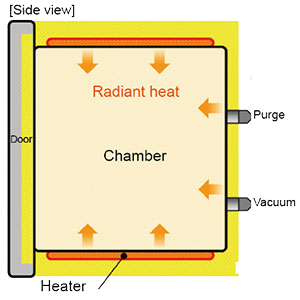

Method
Yamato DP Series Large Vacuum Drying Ovens
Technical Specs
Model |
DP43C
|
DP63C
|
System |
Vacuum drying by decompressed chamber direct heating |
|
Operating Temp. Range |
40~200°C |
|
Operating Pressure Range |
101~0.1kPa (760~1 Torr) |
|
Temp. Control Accuracy |
±1.0°C (at 200°C) |
|
Max. Temp. Reaching Time |
~80 min. |
~120 min. |
Interior Material |
Stainless steel |
|
Exterior Material |
Cold rolled steel plate with baked-on melamine resin finish |
|
Door |
Single swing door |
|
Heat Insulating Material |
Glass wool |
|
Heater |
Mica heater, 2.25 kW |
Mica heater, 3.15 kW |
Vacuum Gauge |
Bourdon tube type, 0~-0.1 MPa (Gauge pressure) |
|
Observation Window |
Tempered glass and polycarbonate resin plate |
|
Temp. Control Method |
PID control by microprocessor |
|
Temp. Setting Method |
Digital setting with ▲/▼ keys |
|
Temp. Display Method |
Green LED digital display |
|
Timer |
1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. and 50 min. |
|
Min. Division |
1 min. or 10 mins. |
|
Operation Function |
Fixed temperature, Quick auto stop, Auto-start, Auto-stop, Program operation (16 segments) |
|
Additional Functions |
Calendar timer (max. 24 Hrs.), Integration time (max. 49999 Hrs.), Time display |
|
Heater Circuit Control |
Triac zero-cross control |
|
Temp. Sensor |
K-thermocouple (double sensor) |
|
Safety Device |
Self diagnostic functions (Sensor, Heater, Triac, Automatic overheating prevention), Independent overheating prevention, Key lock function, Electric leakage breaker |
|
Internal Dimensions WxDxH |
450×450×450 mm |
600×600×600 mm |
External Dimensions WxDxH |
670×669×1500 mm |
820×819×1650 mm |
Internal Capacity |
91L |
216L |
Shelf Support Qty. / Pitch |
4 steps / 105mm |
4 steps / 140mm |
Exhaust Port / Purge Port |
NW25 flange / Rc 1/4 (18mm O.D.) |
|
Power Source |
220V, single phase, 11A (no plug, round terminal) |
220V, single phase, 15A (no plug, round terminal) |
Weight |
~190kg |
~290kg |
Included Accessories |
2 perforated stainless steel shelves |
|
List Price |
$ 10,590
|
$ 14,600 |
