DP83C/104C

Yamato DP Series Industrial Vacuum Drying Ovens

The right vacuum oven makes you more efficient by ensuring the production of quality cannabinoid products takes less time, and proceeds to market faster. Which, ultimately, leads to happy customers and helps your bottom line. Vacuum ovens also help you produce higher quality products, and are great for drying cannabis flowers to remove residual solvents and prevent development of mildew and mold.

Yamato vacuum ovens come from more than a century of experience building exceptional-quality lab instruments. They're already used by biotechs working on innovative cannabis products across the country, and they pair perfectly with other Yamato lab-scale instruments - making your workflow easier. Learn more below and contact us to request a quote.

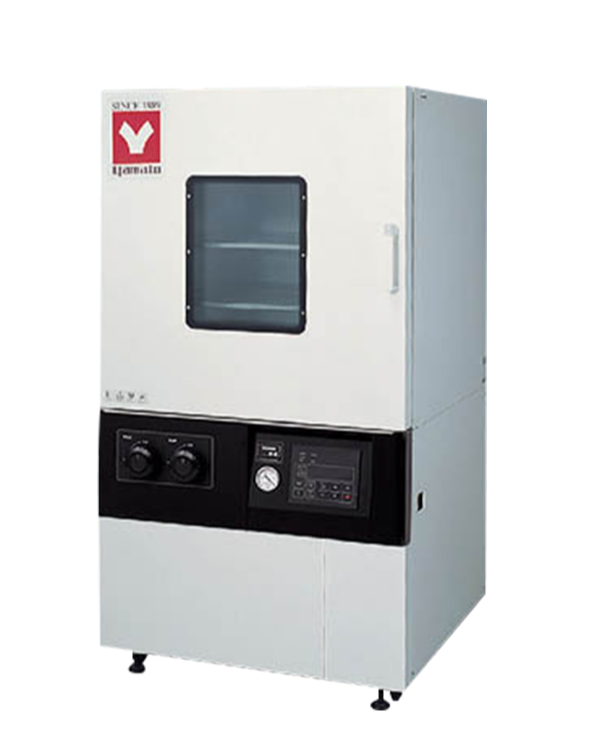

This large-scale Yamato DP Series Industrial Vacuum Drying Oven is designed to provide the best results for your cannabis production.








Interested in Yamato DP series industrial vacuum drying ovens ?

Fill in the form below to request a quote

Submit

Performance & functions:

  • Vacuum pump can be installed inside the oven

  • Quickly connect and disconnect vacuum pipes, for easy vacuum pump maintenance

  • Improved work efficiency, because the exhaust system is improved to significantly shorten the time to reach vacuum

  • Set with specialized function menu key, and specify program operation with use of submenu to operate overheat protector, deviation correction and more.

Safety features

  • Self-diagnostic functions (abnormal temperature sensor, heater disconnection, auto overheat prevention, SSR short circuit), overheat protector, ELB to prevent overcurrent, key lock, etc.

  • For safety, resin protection panel is installed at the observation window

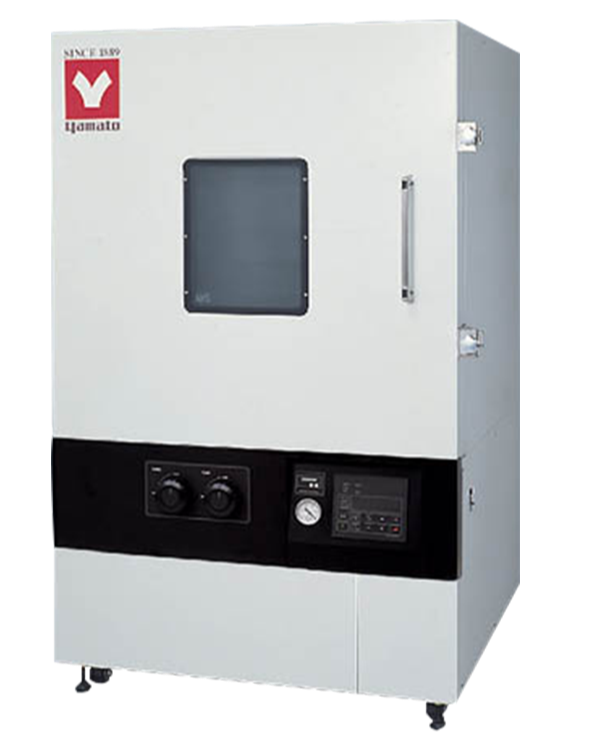

Yamato DP Series Industrial Vacuum Drying Ovens
Dimensions

Yamato DP Series Industrial Vacuum Drying Ovens
Technical Specs

Model DP83C
DP104C
Method
 Decompression • chamber wall heating
Operating Temp. Range
 40~200°C
Operating Vacuum Range
 101~0.1kPa (760~1Torr)
Temp. Adjustment Accuracy
 ±1.0°C (at 200°C)
Interior
 Stainless steel plate
Exterior
 Cold rolled steel plate with chemical proofing coating
Insulating Material
 Glass fiber
Heating Method
 Decompressed chamber wall direct heating
Heater Power
 6.5kW
 14.4kW
Observation Window
 Toughened glass + resin protection panel
Vacuum Gauge
 Pointer type, -100~0kPa
Vacuum Pump Installation Room
 Yes
Temp. Control
 3 segments PID
Temp. Setting
 Use specialized function menu key and up/down key to set
Temp. Display
 Measured temp. display: green 4-digit LED digital display
 Setting temp. display: red 4-digit LED digital display
Timer
 1min-99 hr 59 min and 100 hr-999 hr 50 min (attached with timing wait function)
Operation Function
 Fixed temp. auto start, auto stop, program operation
Program Mode
 Program operation 3 segments 30 steps (30 steps×1, 15 steps×2, 10 steps×3)
Additional Function
 Deviation correction, key lock, power outage compensation
Heater Circuit Control
 SSR driving
Sensor
 K thermocouple (temp. controller and overheat protector)
Safety Device
 Self-diagnosis circuit (abnormal temp. sensing, heater disconnection, auto overheat prevention, SSR short circuit), overheat protector, EBL to prevent overcurrent, key lock, etc.
Internal Dimensions W×D×H
 800×800×800 mm
 1000×1000×1000 mm
External Dimensions W×D×H
 1020×1020×1850 mm
 1300×1280×2110 mm
Internal Capacity
 512L
 1000L
Air Exhaust Port
 NW40 flange
Air Suction Port
 Rc 3/8
Power Source (50/60Hz) Rated Current
 AC220V 31.5A (no plug, round terminal)
 3 phase AC480V 18A (no plug, round terminal)
Weight
 ~450kg
 ~1000kg
Included Accessories
 Stainless steel punching plates, 2 pcs.
 Stainless steel punching plates, 4 pcs.
Optional Accessories
 Shelf plate, vacuum pump, N₂ introduction device, recorder, alarm indicator lamp (stand-by/running/malfunction), external communication (RS485), temp. output terminal (4~20mA), Output terminal for external alarm, time up output terminal
Manufacturer Suggested Price
 $ 26,650
 $ 31,970
