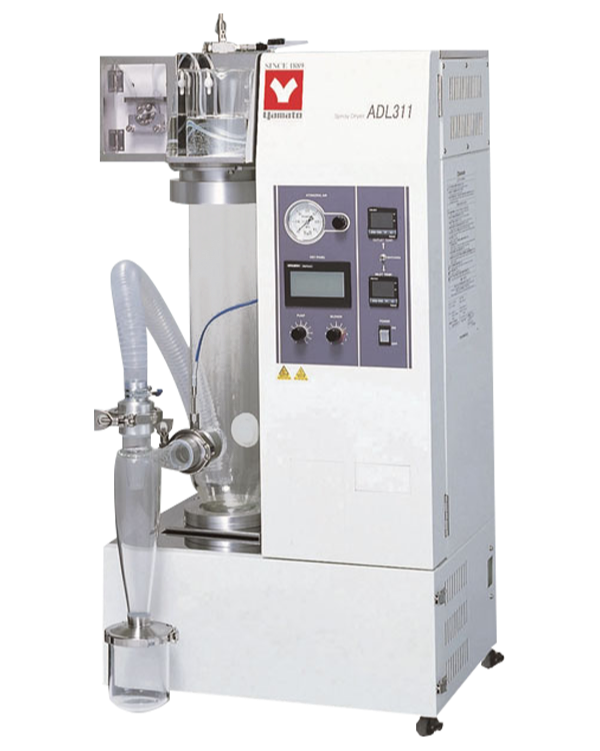

ADL311SA

Yamato ADL Series Compact & Economical Spray Dryer

New spray drying technology is fundamentally changing the cannabis industry, with cannabis powder positioned to be the most in-demand product in the next five years. Early adopters of new spray drying technology will benefit most, and the Yamato ADL311SA is a great model to start with.

The ADL311SA is the most compact and affordable spray drying option, that efficiently micronizes your liquid cannabis oil into a fine powder. It’s as versatile as your business - both highly mobile on wheels, and can be used as a benchtop unit.

It comes equipped with:

  • Unique nozzle cooling mechanism

  • Pulse jet mechanism

  • Nozzle knocker to help achieve stable, consistent spray drying

Every one of our spray drying systems are carefully designed and built to match your essential needs, and the ADL311SA is no exception! Obtain a combination of high performance, at an economical price with the ADL311SA spray dryer.







Interested in the ADL series compact & economical spray dryer?

Fill in the form below to request a quote


Yamato ADL Series Compact & Economical Spray Dryer
Benefits

Spray drying allows manufacturers, distributors, retailers and growers to create products that last longer on shelves, cost less to transport and mix better with consumer products than oils. Benefits of using the ADL311SA to create premium, cannabis powder include:


Lower shipping costs

Spray drying reduces your product’s weight and volume, making it more cost-effective to ship (and leading to huge savings over time)


Easier storage

Powder is astronomically easier to house than oil.


Longer shelf life

The average shelf life of a spray dryer product is over one year.


Absolute solubility

Water and oil don’t mix. Cannabis powder mixes into edibles and drinks better.


A more consistent product

Spray drying makes it easier to produce standardized, cannabinoid-infused products.


Fast-acting, predictable and repeatable experiences

With an onset of 20 minutes, effects that can last up to 4 hours, and a consistent product, customers get a more predictable experience.


More eco-friendly choice

From production to shipping, cannabis powder is proven to be a more eco-friendly alternative.


Lab-scale process validation

Produce consistent results for customers, and ensure your product development can keep up with demand with scalable, spray drying technology.


Yamato ADL Series Compact & Economical Spray Dryer
Features

The ADL311SA spray dryer is built with features that can benefit the cannabis industry at every point in the supply chain: cultivation, production, supplier and retail. This model is:


User-friendly

This model is easy to set up and operate, with a one-touch detachable mechanism for the drying chamber and cyclone


Suitable for heat-sensitive samples

As high heat is not directly applied to fine dry powder


Quality end product

Your end product will be fine, pure, contaminant-free powder which is not oxidized and contains minimal posture


Efficient

Directly drying your oil product into fine powder, with no pre- or post-processes (including filtration, separation or pulverization) required.


Safe

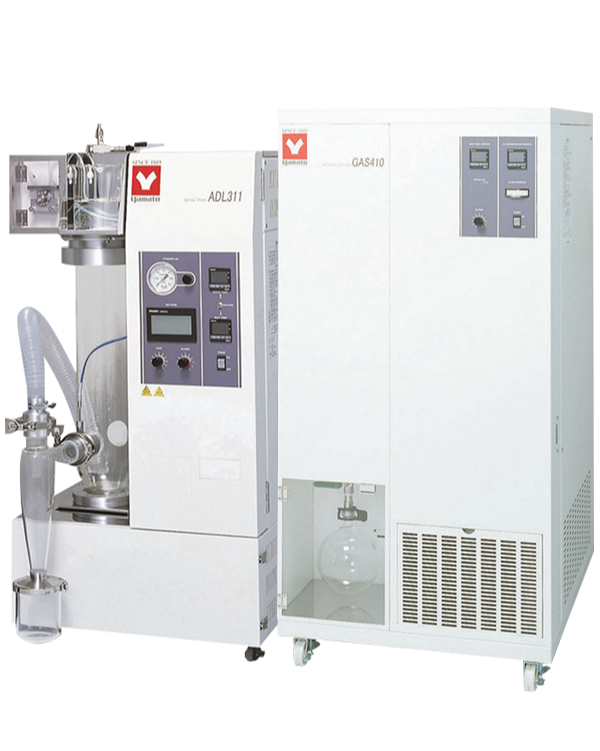

Explosion-free working is guaranteed in combination with GAS410 due to oxygen & pressure control within the spray dryer


Eco-friendly

Organic solvents are recovered in a closed loop to protect the environment by minimizing pollution


Versatile

The ADL311SA spray dryer is highly mobile on wheels, or usable with shorter height as a benchtop unit by removing the moveable caster


Economical

Our most affordable unit, without sacrificing product quality.

The ADL311SA spray dryer is equipped with an arm jack for easy installation and removal of glassware attachments. A service outlet (max. 2A) and a sample stand are equipped as standard for connecting a magnetic mixer for stirring suspended liquid samples. Unique peristaltic pump, nozzle cooling mechanism, pulse jet mechanism and a nozzle knocker for stable spray drying. Spray dryer is designed for aqueous soluble samples. When organic solvent is used, a GAS410 organic solvent recovery unit is required.


Yamato ADL Series Compact & Economical Spray Dryer
Diagram

No. | Part name

1. Heater
2. Inlet temperature sensor

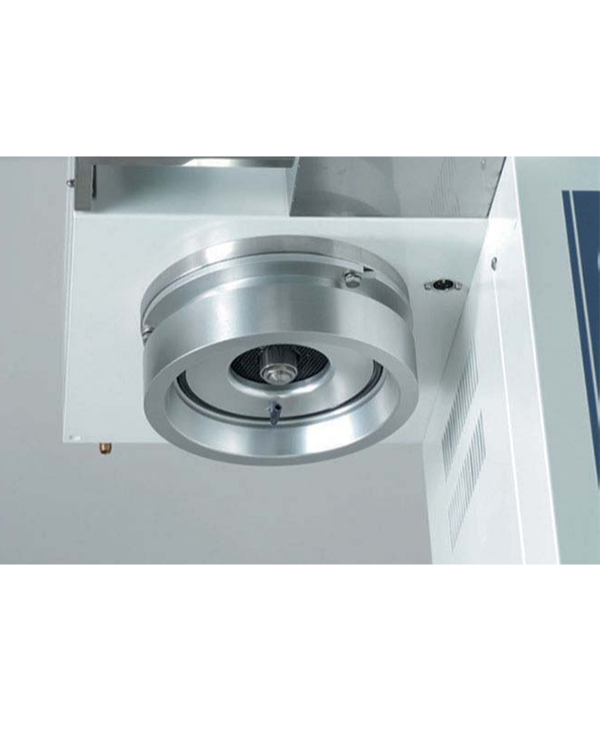

3. Distributor
4. Drying chamber
5. Cap
6. Outlet temperature sensor
7. Cyclone
8. Product collecting container
9. Blower
10. Solenoid valve
11. 3-way solenoid valve (ADL311SA only)
12. Needle valve
13. Pressure meter
14. Spray nozzle
15. Liquid sending pump
16. Nozzle cooling mechanism connecting port


Piping


Spraying Nozzle



Two-way Nozzle System

Tip of the Nozzle comprises of a nozzle for liquid and a nozzle for gas.


Easy to take apart for cleaning to prevent contamination


Nozzle for liquid (F)



Nozzle for gas (A)

Model Nozzle No. Size (um)
1A (Standard) (F) 1650

(A) 64
A 406
B 1270
C 1626
1 (F) 2050

(A) 64
A 508
B 1270
C 1626
2A (F) 2050

(A) 70
A 508
B 1270
C 1778
2 (F) 2850

(A) 70
A 711
B 1270
C 1778
3 (F) 2850

(A) 64
A 711
B 1270
C 1626

Yamato ADL Series Compact & Economical Spray Dryer
Technical Specs

Model ADL311SA
Supported Samples
Water soluble samples
Evaporated Water Amount
Max. 1300 mL/h
Spraying System
Two-way nozzle, Nozzle No. 1A as standard (0.4mm)
Temp. Adjusting Unit Setting Range
40 to 220°C (inlet temperature), 0 to 98°C (outlet temperature)
Temperature Adjusting Accuracy
Inlet temperature ±1°C
Drying Air Amount Adjusting Range
0 to 0.7 m³/min
Spray Air Pressure Adjusting Range
0 to 0.3 MPa
Liquid Sending Pump Flow Rate Range
0 to 26 mL/min
Spray Air Line Washing Function
Spraying at the nozzle tip, manual pulse jet system
External Output
Inlet temperature, outlet temperature, temperature outlet (4-20 mA)
Temperature Adjusting Device
PID digital

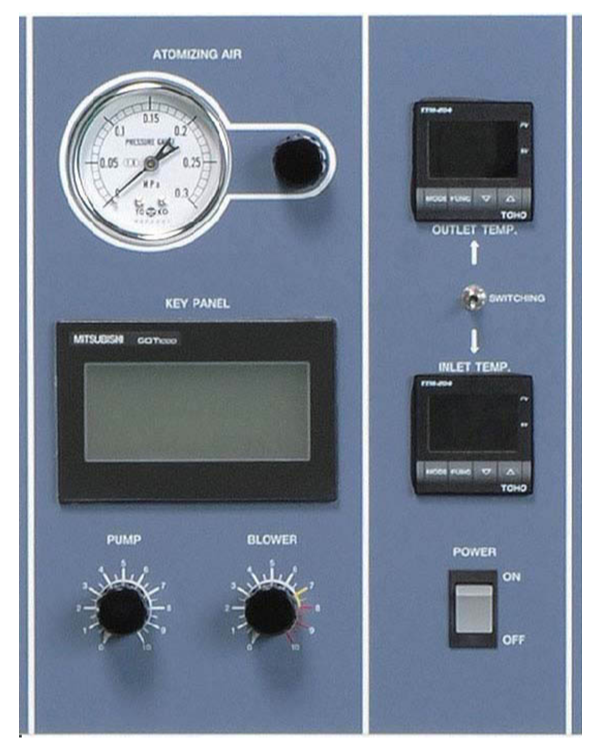

Touch Panel
Blower, heater, liquid sending pump, pulse jet switch, error display
Control Select Switch
Inlet temperature, outlet temperature control switch (outlet temp. control is conditional)
Temperature Sensor
K thermocouple
Heater
2.0kW (at 200V) to 2.88kW (at 240V)
Liquid Sending Pump
Fixed amount peristaltic pump
Spraying Air Pump
For water soluble samples air compressor is used (sold separately). For organic solvent samples the integrated compressor in GAS410 is used (no separate air compressor required).
Service Outlet
For stirrer: AC115V, max. 2A
Suction Blower
Bypass blower
Filter
Suction filter, exhaust filter
Recovery Of Solvent
Use Organic Solvent Recovery Unit GAS410 (sold separately)
Spray Nozzle Cooling Mechanism
Connector: nipple x 2, O.D.:ø10.5 mm
Spray Air Connection Diameter
Nipple diameter: ø7 mm
Spray Air Pressure
Bourdon tube: 0.3 MPa
Exhaust Connecting Diameter
ø50mm
Safety Function
Inlet/outlet temperature overheat, sample feed reverse rotation mechanism, over current electric leakage breaker, nozzle connection error
External Dimension WxDxH
580 x 420 x 1125 mm
Weight
80 kg
Power Supply
Single Phase AC200V~240V 50/60Hz 16~18A Switching of terminals necessary
Included Accessories
Silicon tubes (with a stopper) x 3, exhaust duct (with one hose band) x 1, outlet temperature sensor, spray air tube, sample box, static electricity removal earth, "Tetron" braided tube hose 5m (with two hose bands)
Recommended Operational Units
GAS410 Organic Solvent Recovery Unit, GWS410 Organic Solvent Washing Unit
