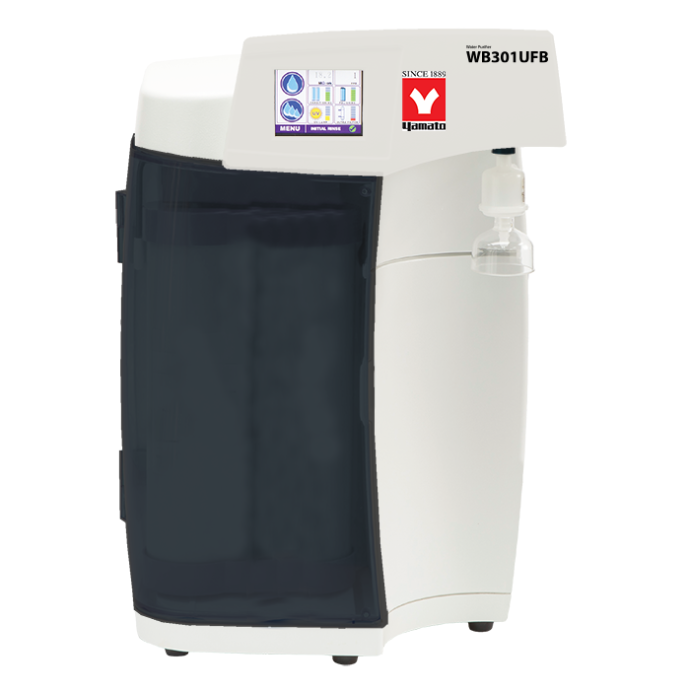

WB301UFB / 311UFB / 301UFR / 311UFR

Biological Type 1 Ultrapure Water Purification System

Description

Water is purified using a staged purification process which includes high-purity ion exchange resins to remove dissolved minerals and pyrogen removal ultrafiltration. As water exits the system, a final filter removes particulates and bacteria to reach Type I water specifications.


Applications

  • Life Science

  • Cell Culture

  • Microbiology


WB Series Configuration

  • Conditioning cartridge

  • Polishing cartridge

  • Ultrafiltration

  • 0.2 micron filter

Stop wasting half your ultrapure water budget.

Fill in the form below for a quote


Features


Made in USA


Low-cost of Ownership


Compact design


Quick change, cartridge
– no tools needed


2.5 LPM* of 18 MΩ Type 1 reagent water on demand


Premium quality ion exchange resin


Intuitive, user-friendly touch screen interface


Large capacity, low cost consumable cartridges


Real time quality monitoring with leak detection


Replacement cartridges are fresh and made in the USA. 1 year shelf life.

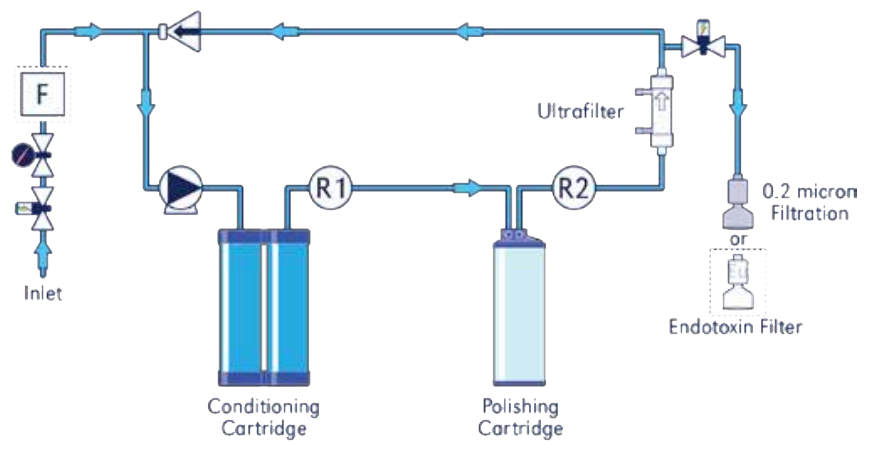

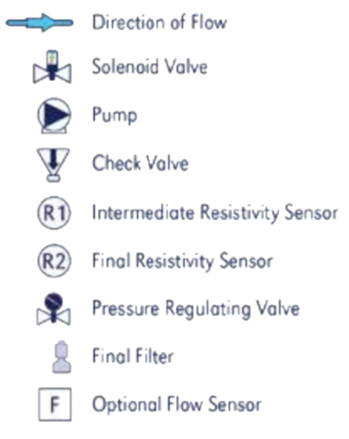

  Flow Diagram



Type 1 Ultrapure Biological Water Purification System
Technical Specs

ModelWB301UFB/WB311UFB
WB301UFR/WB311UFR
Type
Benchtop
Remote dispense
Resistivity*
18.2 MΩ-cm
Bacteria*
< 1 cfu/ml
Endotoxin*
< 0.005 EU/ml
Particulates*
< 0.05 μm filtration
TOC*
< 15 ppb
RNase*
< 0.01 ng/ml
DNase*
< 4 pg/μl
Temperature
100˚F / 30˚C
Pressure
90 PSIG Max. / 20 PSIG Min.
Flow Rate (Typical)
0.67 Gallons Per Minute / 2.5 Liters Per Minute
< 2.0 LPM with Ultrafilter & Endotoxin filter installed
Inlet Connection
3/8” O.D. Tubing / 9.53 mm O.D. Tubing
Dimensions (H X W X D)
21.6 in. x 14.7 in. x 14.4 in. (54.8 cm x 37 cm x 36.5 cm)
Weight
42 lbs. dry / 47 lbs. operating (22.7 kg dry / 25 kg operating)
Power Requirements
120V, 60 Hz @ 1.0 amp / 220V, 50 Hz @ 0.5 amp

* Performance based upon RO / DI or Distillation Feed (< 20 uS/cm, < 50 ppb of TOC, 0.2 micron filtration)
