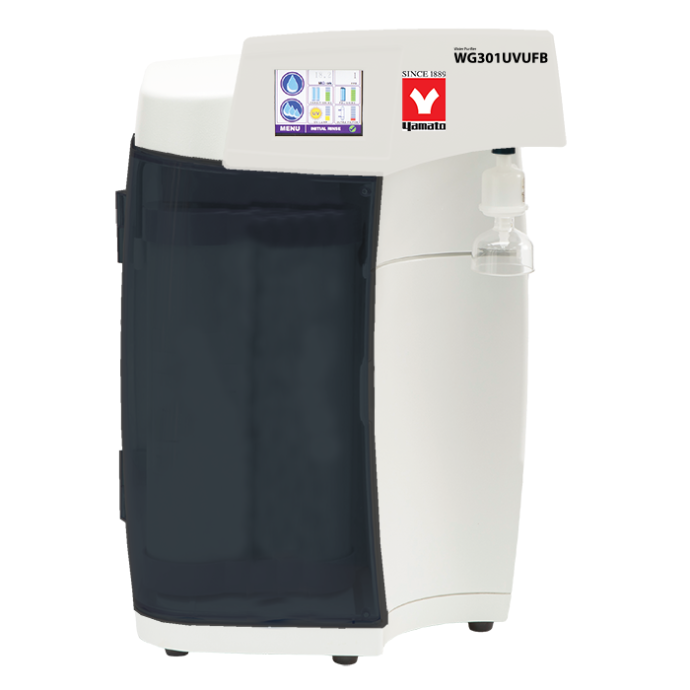

WG301UVUFB / 311UVUFB / 301 UVUFR / 311UVUFR

Biological Low TOC Type 1 Ultrapure Water Purification System

Description

Water is purified using a staged purification process which includes high-purity ion exchange resins to remove dissolved minerals, ultraviolet light for bacteria sterilization and TOC reduction, and ultrafiltration for pyrogen removal and nuclease free water. As water exits the system, a final filter removes particulates and bacteria to reach Type I water specifications.


Applications

  • Genetics

  • DNA Sequencing

  • Polymerase Chain Reaction (PCR)


WG Series Configuration

  • Conditioning cartridge

  • Polishing cartridge

  • UV oxidation

  • Ultrafiltration

  • 0.2 micron filter

Stop wasting half your ultrapure water budget.

Fill in the form below for a quote


Features


Made in USA


Low-cost of Ownership


Compact design


Quick change, cartridge – no tools needed


2.5 LPM* of 18 MΩ Type 1 reagent water on demand


Premium quality ion exchange resin


Intuitive, user-friendly touch screen interface


Large capacity, low cost consumable cartridges


Real time quality monitoring with leak detection


Replacement cartridges are fresh and made in the USA. 1 year shelf life.


  Flow Diagram



Type 1 Ultrapure Biological Low TOC Water Purification System
Technical Specs

Model WG301UVUFB/WG311UVUFB
WG301UVUFR/WG311UVUFR
Type
Benchtop
Remote dispense
Resistivity*
18.2 MΩ-cm
Bacteria*
< 1 cfu/ml
Endotoxin*
< 0.005 EU/ml
Particulates*
< 0.05 μm filtration
TOC*
< 5 ppb
RNase*
< 0.01 ng/ml
DNase*
< 4 pg/μl
Temperature
100˚F / 30˚C
Pressure
90 PSIG Max. / 20 PSIG Min.
Flow Rate (Typical)
0.67 Gallons Per Minute / 2.5 Liters Per Minute
< 2.0 LPM with Ultrafilter & Endotoxin filter installed
Inlet Connection
3/8” O.D. Tubing / 9.53 mm O.D. Tubing
Dimensions (H X W X D)
21.6 in. x 14.7 in. x 14.4 in. (54.8 cm x 37 cm x 36.5 cm)
Weight
42 lbs. dry / 47 lbs. operating (22.7 kg dry / 25 kg operating)
Power Requirements
120V, 60 Hz @ 1.0 amp / 220V, 50 Hz @ 0.5 amp

Downloads

Click on the links below to download the associated PDFs.


Want to cut your price per liter of ultrapure water in half?
