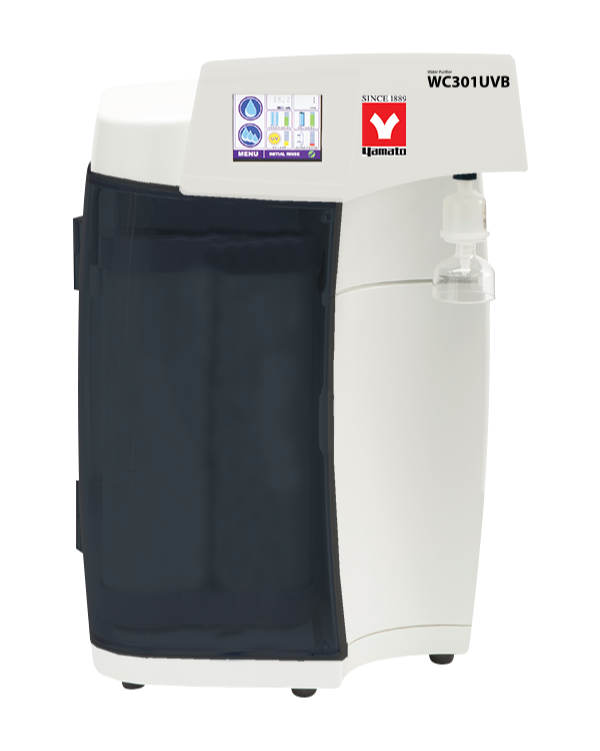

WC301UVB / 311UVB / 301UVR / 311UVR
Analytical Low TOC Type 1 Ultrapure Water Purification System
Description
Water is purified using a staged purification process which includes high-purity ion exchange resins to remove dissolved minerals, and ultraviolet light for bacteria sterilization and TOC reduction. As water exits the system, a final filter removes particulates and bacteria to reach Type I water specifications.
Applications
-
High Performance Liquid Chromatography (HPLC)
-
Gas Chromatography Mass Spectrometry (GC/MS)
-
Inductively Coupled Plasma Mass Spectrometry (ICP-MS)
-
Analytic Chemistry / Trace Organics
WC Series Configuration
-
Conditioning cartridge
-
Polishing cartridge
-
UV oxidation
-
0.2 micron filter
Stop wasting half your ultrapure water budget.
Fill in the form below for a quote
Features
Made in USA
Low-cost of Ownership
Compact design
Quick change, cartridge – no tools needed
2.5 LPM* of 18 MΩ Type 1 reagent water on demand
Premium quality ion exchange resin
Intuitive, user-friendly touch screen interface
Large capacity, low cost consumable cartridges
Real time quality monitoring with leak detection
Replacement cartridges are fresh and made in the USA. 1 year shelf life.

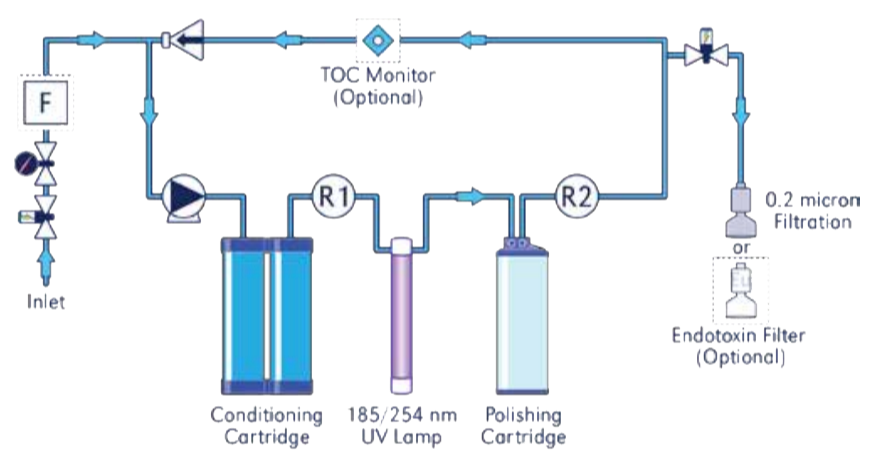

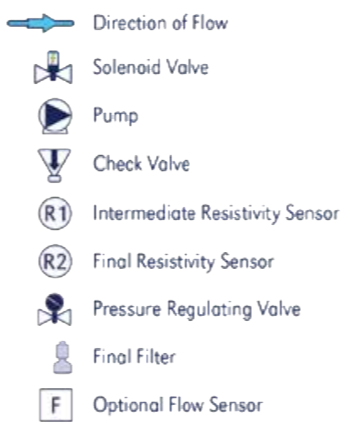

Flow Diagram
Type 1 Ultrapure Analytical Low TOC Water Purification System
Technical Specs
| Model | WC301UVB/WC311UVB | WC301UVR/WA311UVR |
| Type | Benchtop | Remote dispense |
| Resistivity* | 18.2 MΩ-cm | |
| Bacteria* | < 1 cfu/ml | |
| Particulates* | < 0.2 μm filtration | |
| TOC* | < 15 ppb | |
| Temperature | 100˚F / 30˚C | |
| Pressure | 90 PSIG Max. / 20 PSIG Min. | |
| Flow Rate (Typical) | 0.67 Gallons Per Minute / 2.5 Liters Per Minute < 2.0 LPM with Ultrafilter & Endotoxin filter installed | |
| Inlet Connection | 3/8” O.D. Tubing / 9.53 mm O.D. Tubing | |
| Dimensions (H X W X D) | 21.6 in. x 14.7 in. x 14.4 in. (54.8 cm x 37 cm x 36.5 cm) | |
| Weight | 42 lbs. dry / 47 lbs. operating (22.7 kg dry / 25 kg operating) | |
| Power Requirements | 120V, 60 Hz @ 1.0 amp / 220V, 50 Hz @ 0.5 amp | |
* Performance based upon RO / DI or Distillation Feed (< 20 uS/cm, < 50 ppb of TOC, 0.2 micron filtration)
